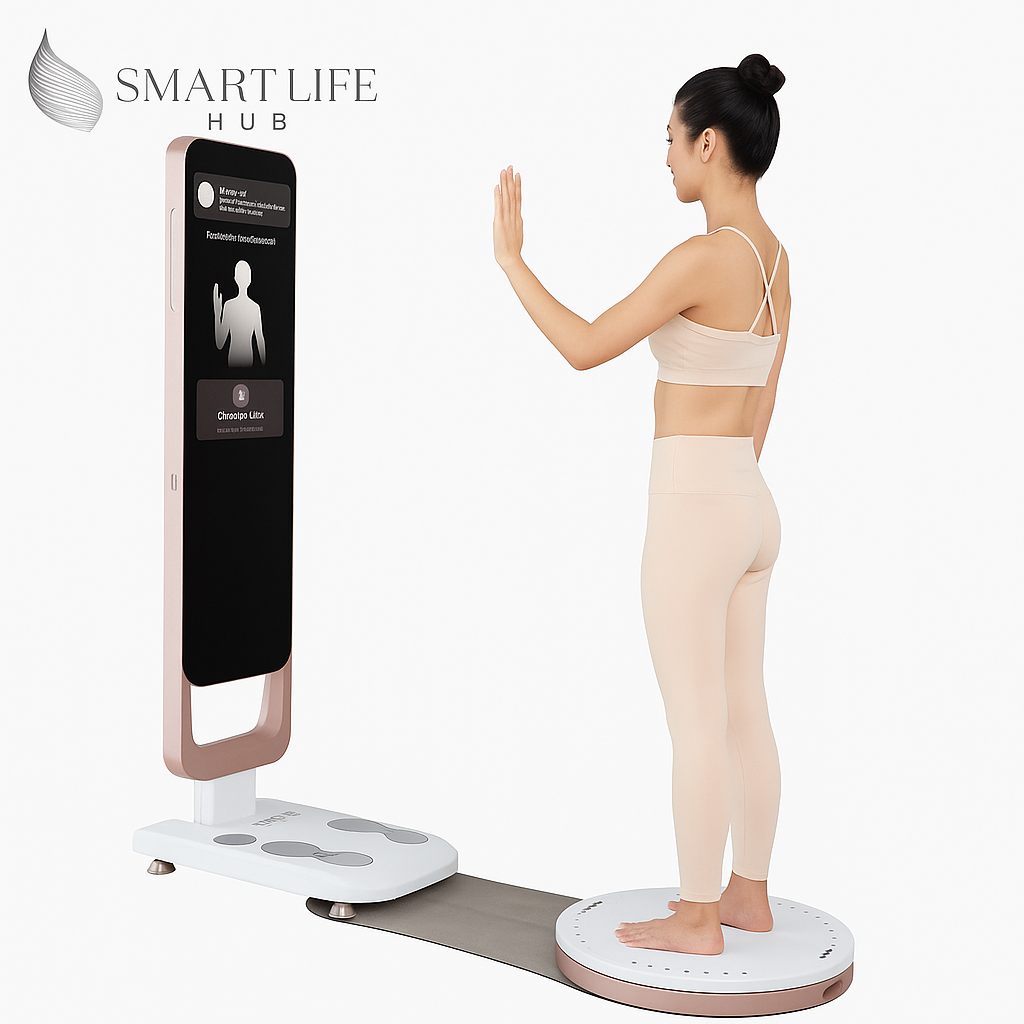

BodyScan 3T

Professional-Grade Body Composition & Posture Analysis System

The BosyScan 3T Intelligent Physical Assessment Instrument represents the pinnacle of comprehensive health assessment technology, combining advanced bioelectrical impedance analysis with cutting-edge 3D imaging and posture screening capabilities. Designed for wellness centers, medical practices, fitness facilities, and research institutions, this professional instrument delivers clinical-grade measurements with exceptional precision.

Advanced Multi-Modal Assessment Technology

Utilizing Direct Segmental Multi-Frequency Bioelectrical Impedance (DSM-BIA) measurement methodology, the U+300 analyzes body composition across 5 segments using 3 frequencies (5kHz, 50kHz, 250kHz). The system employs 8-point contact with 4-electrode measurement for superior accuracy, while integrated 3D structured light depth imaging captures precise posture and body recognition data.

Comprehensive Body Composition Analysis

• Body Composition Metrics: Body weight, fat-free mass, soft lean mass, fat mass, skeletal muscle content, protein, mineral salt, body water, and visceral fat grade
• Advanced Calculations: Body mass index (BMI), shape assessment, percent body fat, FFM index, basal metabolic rate, total energy expenditure, body age
• Segmental Analysis: Detailed measurements for extremity trunk and extremity trunk regions
• Body Circumference Tracking: Shoulder width, bust, waist, hip, left/right upper arm, left/right thigh, and waist-hip ratio

Intelligent Posture Screening

The integrated AI-powered posture analysis evaluates:

• Neck forward positioning and cervical scoliosis
• Round shoulder and uneven shoulder alignment
• Anterior tilt of pelvis and pelvis obliquity
• O/X leg assessment and knee overextension
• Personalized conditioning recommendations based on findings

Professional Features & Connectivity

• Real-Time Voice Guidance: Step-by-step audio instructions throughout the assessment process
• Flexible Reporting: Supports peripheral printing on A4 paper and WeChat applet integration
• Massive Data Storage: Stores up to 100,000 assessment reports with 15G expandable AI model storage
• Advanced Connectivity: Network cable interface × 1, USB 2.0 × 3, power interface × 1, WiFi (2.4GHz and 5GHz), and Bluetooth 4.0
• AI Human Body Model: Sophisticated algorithms for precise body recognition and measurement

Technical Specifications

• Model: U+300
• Test Age Range: 16–99 years old
• Test Weight Range: 5kg–220kg
• Test Height Range: 140cm–210cm
• Equipment Dimensions: 440×704×1700mm
• Net Weight: 60kg
• Power Requirements: AC 100–240V, 50/60Hz, 1.4–0.7A (DC 12V, 8.5A output)
• Operating Environment: Temperature 10–40°C, Humidity 30%–80%RH
• Compatible Peripherals: Laser printers of specified models

Ideal Applications

Perfect for wellness centers, medical clinics, sports performance facilities, corporate wellness programs, research institutions, and high-end fitness studios seeking to provide comprehensive health assessments and personalized wellness recommendations.

Warranty & Support

• 1 year warranty on host machine, 3 months for accessories
• Lifetime technology support
• Online machine training included
• Lifetime online after-sale service
